What the Dinstar DP92V is designed to solve

A modern entrance often needs more than a bell and an electric strike. Security staff may need to see a visitor, speak to that person, send the call to an indoor monitor or SIP endpoint, and then trigger a door or barrier action under controlled conditions. The DP92V brings these functions into an IP-based intercom terminal. Dinstar positions the series for intelligent access control and intercom security scenarios such as building management, industrial environments, banks, schools, tourist locations, stations and technology parks. The value for a business is the ability to place the entrance device on the same planned communications environment as other SIP endpoints while retaining dedicated inputs and outputs for door-related functions.

The family supports two SIP lines and two SIP servers, enabling structured registration and calling arrangements. SIP over TLS and SRTP are supported for environments where protected signaling and media are required, subject to correct system-wide configuration. ONVIF support is useful when the video stream needs to participate in compatible surveillance or monitoring workflows. The device also supports standard IP networking methods including DHCP, static addressing and PPPoE, plus HTTP/HTTPS management, provisioning options, SNMP/TR069, syslog and configuration backup or restore.

For procurement, the important point is that “DP92V” describes a family rather than one identical hardware configuration. DP92V-S and DP92V-D are single- and dual-button versions without 4G; MS and MD add RFID; SG and DG add 4G; MSG and MDG combine 4G with RFID. Selecting the correct suffix prevents a common purchasing problem where the base model is suitable but the ordered variant lacks a required access method or connectivity option.

Verified DP92V technical highlights

Specifications apply to the DP92V family as published by Dinstar; exact functions should be checked against the specific suffix being quoted.

DP92V model selection guide

Use the suffix to match the entrance requirement. A single-button model can suit a reception, guard post, apartment lobby or emergency point where one destination is called. A dual-button model can route visitors toward two destinations, for example reception and security. RFID-enabled variants add card-based access as a local credential option. The 4G variants include a nano-SIM slot and LTE radio for deployments where the design specifically requires cellular connectivity. 4G suitability still depends on carrier bands, SIM service, signal conditions, data policy and the rest of the communication architecture, so the presence of a modem should not be treated as a guarantee of service at every site.

Integration planning for SIP, access control and the LAN

A successful DP92V deployment begins with the call path. Decide whether the intercom will register to an IP PBX, call an indoor monitor, ring a SIP desk phone, reach a security station or participate in another compatible SIP workflow. Confirm codec support, extension numbering, registration credentials, DTMF behavior, network routes and firewall rules. When secure SIP is required, certificates and TLS/SRTP settings must be compatible on both sides. The presence of a security feature in the product does not automatically mean the whole call path is protected unless every participating system is configured accordingly.

Next, map the physical door functions. Determine the type of electric lock or barrier controller, required relay behavior, exit button, door contact or sensor logic and power arrangements. Access-control wiring should be designed so that loss of power, network interruption or a failed component produces the intended safety result. Door egress and life-safety requirements should be reviewed with the responsible project professionals and applicable local rules.

Finally, prepare the network. If PoE is used, confirm available switch power budget and UPS strategy. Assign a documented IP address or DHCP reservation, place the unit in an appropriate VLAN where practical, limit management access, use HTTPS administration, change default credentials and maintain firmware and configuration backups. FourTeck Tanzania’s integrated IT and security overview explains how voice, switching, cameras and access control can be planned together, while the Tanzania services page provides wider project context for design, installation and support requirements.

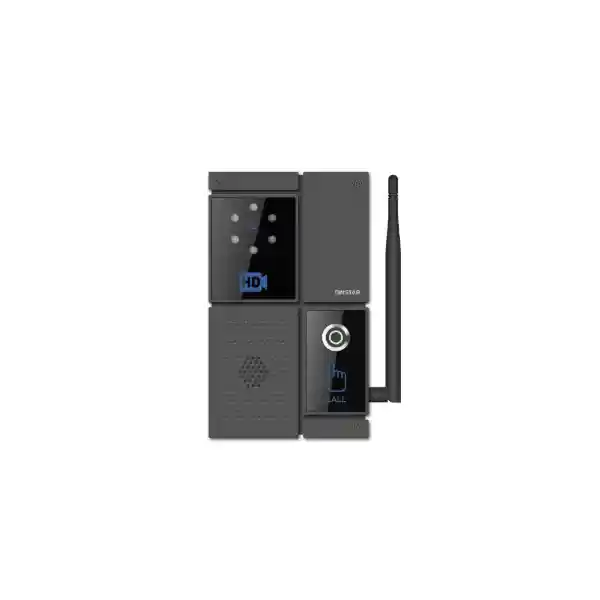

Dinstar DP92V SIP Video Intercom Tanzania

For organizations evaluating the Dinstar DP92V SIP Video Intercom in Tanzania, the strongest buying case is an entrance or help point that needs to connect physical access with an IP communication platform. A corporate office may use the intercom at a main gate so a visitor can call reception or security. A warehouse may place it at a controlled loading entrance. A school or campus can use a video intercom where staff need to verify the caller before releasing a compatible lock. An industrial property can use a rugged SIP endpoint in an area where a normal desk phone is unsuitable. The DP92V’s IP65 and IK10 ratings, broad published operating temperature range and metal housing make it relevant to these more demanding environments, provided the overall installation—cabling, gland sealing, power, enclosure position and associated hardware—is engineered correctly.

Procurement in Tanzania should start with the model suffix and system dependencies. Buyers should specify whether one or two call buttons are required, whether RFID is needed and whether 4G is part of the intended design. They should also identify the PBX or SIP platform, the endpoint that will answer the call, the electric lock or barrier interface, the number of doors or gates, the available Ethernet path and whether PoE is already present. If the project depends on cellular connectivity, the exact DP92V-G variant and carrier compatibility should be confirmed before ordering rather than assumed from the presence of a SIM slot.

Network readiness is equally important. A video intercom carries real-time voice and video, so stable switching, suitable VLAN policy and reliable power help create a better user experience. The PoE switch should have sufficient capacity and, where access remains operationally important during short power failures, the switch and upstream network may need UPS protection. SIP registration details, DTMF behavior and any ONVIF integration should be tested during commissioning. This avoids treating the intercom as a stand-alone security appliance when its performance actually depends on several connected systems.

For a quotation, provide the site type, quantity, required variant, answering device or PBX, lock type, cable distance, mounting location and any integration requirements. That information allows the DP92V to be evaluated as part of a complete Tanzania solution rather than as a generic item. For related communication and physical-security planning, FourTeck Tanzania covers IP PBX, SIP endpoints, switching and access-control solution design on its main site.

Dinstar DP92V SIP Video Intercom Dar es Salaam

In Dar es Salaam, a DP92V deployment can be particularly useful for commercial buildings, gated offices, logistics locations, hospitality properties, campuses and multi-tenant premises where visitor communication occurs at a perimeter point rather than directly at reception. The design objective should be to make the entrance call simple for the visitor while giving staff enough information to make an access decision. Video verification adds context to the voice conversation, while SIP registration allows the call to be delivered to an appropriate compatible endpoint. For sites with more than one operational destination, a dual-button version may allow a more direct choice between departments such as reception and security.

A Dar es Salaam project should account for the physical entrance environment. The product’s IP65 and IK10 ratings are useful attributes, but reliable operation still depends on how the unit is mounted, how cables enter the back box, whether the location experiences direct water exposure, how heat and sunlight affect the installation, and whether the connected lock and power supply are similarly appropriate. The DP92V can be powered through 802.3af PoE or a 12V DC supply. PoE is often attractive because it can reduce separate power cabling, but the network switch, upstream power and cable run must be planned as part of the same system.

For office towers or managed compounds, integration questions frequently matter more than the intercom itself. Identify whether visitors call a reception desk, security control room, indoor monitor or IP PBX extension. Confirm the behavior after hours and during busy periods. Decide who has authority to trigger door release and how that action is logged in the broader access-control process. If ONVIF video is intended to feed a compatible VMS or surveillance environment, validate interoperability in the actual software version before making it a contractual assumption.

Quotation preparation should include floor or gate plans, the number of entrances, expected call destinations, lock or barrier type, existing network switches and any need for RFID or 4G. This approach is more useful than asking only for a “DP92V price in Dar es Salaam,” because the correct variant and accessories depend on the intended architecture. A technically complete bill of materials can then be prepared around the site rather than around a single product code.

Dinstar DP92V SIP Video Intercom Mwanza

For Mwanza businesses and institutions, the DP92V can be considered where an entrance needs durable two-way communication without requiring a person to stand at the gate. Warehouses, offices, educational facilities, healthcare support buildings, accommodation properties and industrial compounds may all have controlled doors or gates that benefit from a direct connection to reception or security. A SIP-based design can place the entrance station within an existing voice environment, which means the answering point may be chosen according to operations rather than being tied to a dedicated analog door-phone handset.

The first design decision is the call workflow. A visitor should have an obvious button to press and the call should reach a staffed destination. If the site has two distinct visitor paths, the dual-button DP92V variants can support two call keys. RFID-enabled models are relevant where approved users also need credential-based entry, but the organization should define who issues and revokes cards and how credentials fit its wider access policy. Where the project proposes 4G, confirm that the cellular variant is the right choice and validate signal, band compatibility and subscription requirements at the actual site.

Mwanza deployments should also consider maintenance access. The intercom is a networked endpoint and will require an IP plan, secure administration credentials, firmware management and configuration backup. A documented switch port, VLAN, SIP account and lock interface simplify future troubleshooting. Where PoE is used, calculate the switch power budget and make sure the cable route follows good Ethernet practice. If the gate or entrance is distant from the network room, cable distance and surge exposure should be reviewed early rather than discovered after civil work is complete.

When requesting a DP92V quotation for Mwanza, include the quantity, exact entrance type, cable availability, answering endpoint, PBX or SIP server, lock or gate controller, preferred button count and any RFID or 4G requirement. That information helps distinguish a basic device supply from a complete working solution. It also exposes dependencies such as PoE switching, UPS backup, mounting accessories or access-control hardware that may otherwise be missed in a simple product-only request.

Dinstar DP92V SIP Video Intercom Arusha

Arusha buyers may evaluate the Dinstar DP92V for offices, hospitality sites, schools, tour operations, compounds, gated residences used for business purposes and managed facilities where a controlled entrance must remain connected to staff. The combination of video, SIP audio and door-control interfaces makes the device suitable for scenarios where the person answering needs more context than a simple buzzer provides. The operator can communicate with the visitor through the SIP call path and, in a properly designed access-control system, initiate a compatible door or gate action according to site policy.

Hospitality and visitor-facing locations should focus on usability. Button labeling, camera position, microphone height, lighting and the speed at which calls are answered all affect the experience. A technically correct intercom can still frustrate visitors if the call destination is often unattended or if the video angle does not show the person clearly. The DP92V family includes single- and dual-button variants, which gives planners flexibility to keep the visitor interface simple. If two buttons are used, the destinations should be obvious and operationally meaningful rather than creating unnecessary choices.

For sites that already use an IP PBX, the DP92V should be treated as another managed SIP endpoint with additional security functions. Confirm registration support, extensions, codecs, DTMF behavior and network policies. If secure signaling and media are required, configure compatible SIP TLS and SRTP settings across the platform. ONVIF support can be valuable when the entrance video is intended to be viewed in a compatible security environment, but the VMS and use case should be tested directly. Standards support improves the chance of interoperability; it does not remove the need for commissioning.

A useful Arusha quotation request should therefore describe both the entrance and the communication system. Include the number of gates or doors, cable distance, PoE availability, PBX or indoor monitor, electric lock or barrier type, hours of operation and whether credential entry is required. This allows the model suffix and surrounding equipment to be selected around the user journey and site infrastructure instead of choosing a variant solely from a feature list.

Dinstar DP92V SIP Video Intercom Dodoma

In Dodoma, organizations planning offices, institutions, compounds, government-facing facilities, educational sites or commercial premises can consider the DP92V where entrance communication must be integrated with a structured network. The product supports two SIP lines and two SIP servers, which can be useful when the architecture requires controlled registration or resiliency at the SIP layer. The intercom also supports full-duplex communication, speed dialing and default auto answer functions, giving system designers multiple ways to fit it into a managed communication workflow.

Security planning should begin with roles. Define who receives a visitor call, who can unlock the door, what happens outside normal hours and what staff do if the call is unanswered. If a door contact or sensor input is used, define what event it represents and how it is monitored. If an RFID variant is selected, card lifecycle management becomes part of the access policy. These operational decisions are important because an intercom is only one component in a chain that may include a lock, exit device, controller, PBX, PoE switch, firewall, monitoring screen and UPS.

The network should be designed with the same care as the physical wiring. Assign the DP92V a documented IP identity, restrict administration to trusted networks, use HTTPS management where practical and preserve configuration backups. Where voice and video quality are important, avoid congested uplinks and poorly managed switching. For buildings with multiple security devices, a dedicated or logically segmented security VLAN can make policy and troubleshooting clearer, subject to the organization’s network design. PoE Class 3 support gives installation flexibility, but the switch’s overall power budget remains a design constraint.

Dodoma procurement teams can make quotation comparison easier by supplying a consistent requirement sheet to vendors. State the exact DP92V variant if known; otherwise list button count, RFID and 4G needs. Add the quantity, answering platform, lock type, cabling status, mounting environment and commissioning expectations. This makes proposals more comparable and reduces the risk that one quotation includes the necessary system components while another lists only the intercom terminal.

Dinstar DP92V SIP Video Intercom UAE

For UAE projects, the DP92V can fit building entrances, logistics facilities, parking access points, warehouses, commercial compounds, schools and sites where SIP communication and physical access control are being brought together. The product’s metal construction, IP65 protection, IK10 impact rating and broad published temperature specification are relevant to demanding installations, although the installer should still consider direct solar exposure, enclosure placement, cable entry, dust, water paths and the environmental ratings of the connected lock, controller and power equipment. A complete outdoor design is only as robust as its least protected component.

UAE buyers often work with multi-vendor building systems, so protocol support matters. SIP v1/v2, SIP over TLS, SRTP and ONVIF provide useful integration foundations, while standard IP management and provisioning features help network teams maintain the endpoint. Before procurement, confirm the exact interoperability targets: the PBX brand and firmware, VMS or indoor monitor, door controller or relay interface, and any requirement for centralized provisioning. A standards-based product can still require configuration changes on both sides, and proof-of-concept testing is sensible for larger rollouts.

The 4G DP92V-G models can be relevant for locations where a cellular path is intentionally part of the design. However, a SIM slot should not be used as a substitute for network planning. Confirm the supported LTE bands, local operator service, signal at the mounting position, data allowance, NAT behavior and the intended SIP architecture. For normal LAN-based installations, 802.3af PoE can simplify power delivery and allow the network and intercom to share a UPS-backed switch.

FourTeck’s UAE IT and telecom solutions site provides regional context for IP PBX, network, CCTV and access-control projects. A useful DP92V UAE quotation should identify the model variant, entrance count, answering endpoints, access method, network readiness and commissioning scope so the proposal reflects the actual building workflow rather than a device-only price.

Dinstar DP92V SIP Video Intercom Uganda

Uganda organizations can use the DP92V conceptually in the same kinds of controlled-entry environments found across East Africa: office compounds, schools, warehouses, clinics, hospitality properties, residential developments and industrial sites. What makes the device useful is not simply that it has a camera; it is the ability to combine visual verification, SIP calling and door-control interfaces in one managed endpoint. This allows a security or reception workflow to be designed around the people already responsible for answering calls rather than introducing a separate isolated communication system.

The exact DP92V suffix should be selected from the operational requirement. Single-button models suit a single call destination. Dual-button models can support two obvious call paths. RFID-equipped versions can support credential-based entry for authorized users, while 4G versions are intended for deployments that need cellular connectivity. When cellular capability is requested, the project team should verify local operator compatibility, signal quality and IP connectivity conditions at the site. Where Ethernet is available, PoE can be a simpler design because the same network cable carries data and power from a suitable switch.

Uganda projects should also consider how the DP92V interacts with the wider communications environment. If it registers to an IP PBX, the extension plan, codecs, DTMF method, ring destination and failover behavior should be documented. If the intercom feeds video to a compatible surveillance platform, test ONVIF behavior before rollout. Secure management matters too: limit configuration access, prefer HTTPS, maintain backups and treat the device as part of the organization’s network-security inventory.

For customers comparing regional support options, the FourTeck Uganda site covers IP PBX, VoIP, CCTV and networking solution areas that commonly surround an intercom deployment. A quotation request should include location type, device count, preferred variant, PBX, lock or barrier hardware, cable route and installation expectations. This helps procurement teams compare complete, functionally equivalent proposals.

Dinstar DP92V SIP Video Intercom Kampala

Kampala businesses frequently operate from buildings or compounds where the main entrance is separated from the person who needs to authorize entry. A SIP video intercom can reduce that gap by turning the gate or door station into a managed communication endpoint. The DP92V lets the visitor initiate a call while the answering staff member receives voice and video through the configured compatible system. This can support reception desks, security rooms or other staffed endpoints, and the relay or access-control interface can participate in a planned unlocking workflow.

In a busy office environment, the workflow should be designed for peak periods. Consider how simultaneous arrivals are handled, whether one or two call buttons make sense and where calls go if the primary destination does not answer. If the intercom registers to an IP PBX, call forwarding, hunt groups or after-hours routing may be available depending on the PBX platform. Those features belong to the overall system design rather than the DP92V alone, so they should be tested during commissioning instead of assumed from the intercom specification.

Network reliability can directly affect the visitor experience. A marginal cable, overloaded PoE switch or unstable VLAN path can produce symptoms that look like an intercom fault. Kampala deployments should therefore include cable testing, PoE budget confirmation, documented switch ports and suitable power backup for critical entrance infrastructure. The DP92V supports 802.3af PoE Class 3 and 10/100 Ethernet, which fits many existing networks, but the upstream switch and PBX still need enough resilience for the site’s operating expectations.

When requesting pricing in Kampala, avoid specifying only “Dinstar DP92V.” Add whether RFID is needed, whether 4G is needed, the number of call buttons, quantity, answering endpoint, lock type and installation environment. If the project is an upgrade, include details of the existing PBX, access controller and cabling. This provides enough information to identify reuse opportunities and integration risks before installation starts.

Dinstar DP92V SIP Video Intercom Arua

For Arua sites, a key question is often whether the entrance communication system can remain practical to support after installation. The DP92V uses standard IP and SIP technologies, which can be an advantage where an organization already maintains a data network or IP telephony platform. Rather than deploying a proprietary door station with a dedicated handset, planners can evaluate whether the intercom can register to their existing compatible SIP environment and route calls to endpoints staff already use. That architecture can simplify operations, but only if addressing, credentials, switch ports and configuration are properly documented.

Physical installation deserves equal attention. The DP92V’s enclosure is specified as IP65 and IK10, but cabling and mounting can undermine those protections if poorly executed. Use appropriate cable routing, strain relief and mounting practices, and consider the security of exposed conduits. If PoE is used, confirm cable length and quality and protect upstream equipment according to the site’s electrical environment. If a 12V DC supply is preferred, place and protect the power source sensibly rather than leaving adapters in inaccessible or uncontrolled locations.

For access control, define whether the relay drives a lock directly or interfaces with a separate controller; the correct approach depends on the lock, power and security design. Exit-button and sensor inputs should be mapped clearly. RFID variants are appropriate only when local credential use is required. If the project requires cellular communication because wired connectivity is impractical, select a DP92V-G model and verify LTE suitability at the real mounting point. Do not assume that a 4G feature automatically solves weak signal or service-policy limitations.

Arua procurement requests should state what success looks like: who presses the button, who answers, what video is seen, how entry is released, what happens during a network or power event and who maintains the configuration. With those answers, the equipment list can be sized around the actual entrance workflow rather than around a generic intercom specification.

Dinstar DP92V SIP Video Intercom Mbarara

Mbarara organizations considering a SIP video intercom may be balancing security, visitor convenience and the cost of adding dedicated infrastructure. The DP92V can help when the site already has IP networking and perhaps a SIP PBX, because it can be integrated into that environment rather than requiring a completely separate voice system. Typical applications include office gates, schools, warehouses, hotels, clinics, staff entrances and compounds where a caller at the perimeter needs to reach someone inside before access is granted.

The model range supports different operational styles. Single-button devices are straightforward for sites with one answering destination. Dual-button models can separate functions such as “Reception” and “Security” if both are reliably staffed. RFID variants add a second use case for authorized personnel who need card access, while the 4G versions provide an alternative network path for deliberately cellular designs. The best choice depends on the building process, not on which version has the longest feature list.

For a stable installation, plan the entire signal and power chain. The DP92V can use PoE, but the switch needs spare PoE capacity and should be connected to stable power. The Ethernet path must reach the SIP server or other destination through suitable network policies. If the site uses VLANs, Quality of Service or firewall restrictions, document the required traffic. Administration access should be limited and configuration backups retained. Where ONVIF is used to share video with a compatible VMS, test authentication, stream selection and practical operator viewing during commissioning.

A meaningful Mbarara quotation should therefore include a small site brief rather than only a product model. State the number of entrances, the physical door or gate hardware, cable status, PBX, desired call destination, unlock method and maintenance expectations. If the system must continue working during power cuts, describe the required runtime so UPS sizing for switches, PBX and access-control components can be considered together.

Dinstar DP92V SIP Video Intercom Gulu

In Gulu, the DP92V can be evaluated for organizations that want a network-based entrance intercom with visual verification and access-control interfaces. A common practical objective is to avoid sending staff physically to the gate for every visitor. Instead, the visitor places a call from the entrance, an authorized staff member communicates through the configured SIP endpoint and the site follows its own procedure for granting or refusing access. The product supports this architecture while also offering variants for RFID credentials or 4G connectivity when those capabilities are explicitly required.

The installation should be planned around maintainability. Label the network cable, switch port, intercom IP address and SIP account. Keep a record of the exact suffix and firmware version. Save configuration backups after commissioning. These steps are inexpensive but valuable when a device must be replaced, moved or troubleshot months later. If the intercom is connected to a remote PBX or cloud-hosted SIP platform, confirm the WAN, NAT and security design and make sure that remote management does not unnecessarily expose the unit to the public internet.

The entrance hardware also needs a clear failure strategy. Decide what happens if the network is down, if the PoE switch loses power or if the relay interface fails. Depending on the site, the design may require separate egress hardware, manual override or access-controller logic. Those choices should be made by the responsible security and electrical professionals rather than inferred from the intercom alone. The DP92V provides relay, sensor and exit-button interfaces, but the broader door-safety design remains site-specific.

Gulu buyers requesting a quote should identify whether the requirement is supply-only, configuration assistance or a complete installed solution. Include entrance photos or drawings when available, cable distances, door-lock details and the expected SIP destination. This makes it easier to determine whether existing switching, PBX and power infrastructure can be reused and whether additional components are necessary for a reliable outcome.

Dinstar DP92V SIP Video Intercom Kenya

Kenya businesses evaluating the DP92V may be looking for a SIP door station that can work alongside existing IP telephony, security and network infrastructure. Offices, logistics properties, factories, schools, hotels, managed apartments and gated sites can all have a similar requirement: let a visitor call a responsible person, provide enough audio and video context for verification, and then integrate the decision with a compatible door or gate mechanism. The DP92V’s SIP and ONVIF support gives system integrators standards-based building blocks for that workflow.

Model selection should be tied to the site process. If one team answers all entrance calls, the single-button model keeps the interface straightforward. If two staffed destinations must be available, consider a dual-button version. RFID variants are relevant where staff or approved users should present credentials at the same terminal. For remote gates where cellular networking is intentionally required, a DP92V-G model may be considered, subject to verification of LTE bands, operator service and signal quality. A wired Ethernet/PoE design remains appropriate when structured cabling is available and reliable.

Kenya deployments should also account for security hardening. Change default credentials, use HTTPS administration, restrict management networks and keep firmware and backups under control. SIP TLS and SRTP are available when the rest of the platform supports compatible configuration. If the intercom is exposed to an external network path, review NAT and firewall rules carefully rather than opening broad inbound access. These measures matter because a door station is both a physical-security device and an IP endpoint.

The FourTeck Kenya site covers IP PBX, VoIP, video conferencing, network security and enterprise networking, which are relevant adjacent technologies for intercom integration. A Kenya quotation request should list quantity, location type, preferred suffix, PBX, answering endpoint, lock hardware, PoE availability and commissioning scope so product and project costs can be compared accurately.

Dinstar DP92V SIP Video Intercom Kuwait

For Kuwait projects, the DP92V is relevant where businesses need a rugged SIP entrance station that can participate in a wider IP communications and security environment. Warehouses, commercial compounds, schools, office buildings, parking facilities and industrial sites may require a visitor to communicate with staff before a gate or door is released. By placing that interaction on SIP, organizations can potentially route calls to suitable compatible phones, monitors or PBX destinations rather than depending on a single dedicated analog indoor station.

Environmental design should be considered carefully. Dinstar specifies a working temperature range from -35°C to 65°C and IP65/IK10 protection for the DP92V family. Those ratings are useful, but Kuwait installations can expose equipment to intense sunlight, heat, dust and difficult exterior conditions. Mounting location, shading, cable glands, backing surfaces, surge protection and the ratings of associated door hardware should therefore be reviewed as part of the installation. Environmental suitability cannot be judged from the intercom enclosure alone.

From a network perspective, decide whether the unit will sit on a dedicated security VLAN, a voice VLAN or another controlled segment. The right choice depends on the organization’s architecture and how the PBX, VMS and access controller communicate. The DP92V supports common IP services, HTTPS management, auto provisioning, SNMP/TR069 and syslog, which can assist larger deployments. However, monitoring and provisioning features should be enabled only where they fit the organization’s operational and security standards.

Kuwait procurement teams should request a complete technical schedule with the exact DP92V variant, button count, RFID or 4G requirement, PoE or DC power choice, SIP platform, access hardware and mounting environment. For cellular versions, confirm local LTE compatibility before purchase. For multi-door projects, a pilot installation can be valuable to validate audio levels, video angle, PBX behavior and door-control timing before the full rollout.

Dinstar DP92V SIP Video Intercom Ghana

Ghana organizations can consider the DP92V when they need to modernize an entrance from a simple bell or analog intercom to an IP-based communication point. Offices, schools, commercial buildings, warehouses, hospitality sites and gated facilities may benefit from having video and two-way audio available to the staff member deciding whether to grant entry. Because the unit uses SIP, it can be evaluated alongside existing IP PBX infrastructure, while ONVIF support can provide an integration path for compatible video-management environments.

The purchasing process should distinguish between communication requirements and access requirements. Communication questions include who answers, how long the call rings, whether another extension should take over and what happens after hours. Access questions include the lock type, relay behavior, exit button, door contact and whether RFID credentials are needed. The DP92V family offers the necessary interfaces for many such designs, but the final behavior depends on the connected equipment and configuration. A site survey or accurate entrance drawing can therefore prevent mismatched assumptions.

If PoE is available, the DP92V can receive power over an 802.3af switch port. This can simplify cabling and makes it possible to include the intercom in a centralized UPS strategy. Where power and data are provided separately, confirm the 12V DC supply arrangement and network path. For larger deployments, keep a structured record of MAC address, IP address, SIP extension, switch port, door number and model suffix. This turns future support from guesswork into a controlled maintenance process.

Ghana buyers should also be precise about 4G. Only the relevant DP92V-G variants include cellular capability, and service depends on the operator and site conditions. Request confirmation for the intended network rather than treating 4G as universal. A quotation should list all these dependencies so the supplier can distinguish the terminal price from the complete cost of an operational door communication solution.

Dinstar DP92V SIP Video Intercom Nigeria

Nigeria projects involving controlled entrances often need communication, surveillance awareness and access authorization to work together. The Dinstar DP92V can serve as the visitor-facing SIP endpoint in that design. A caller at the gate presses a button, the configured SIP destination receives the call, and the authorized operator can use the broader access-control workflow to allow entry. Video gives the operator additional context, while the intercom’s relay and sensor interfaces enable integration with compatible locks, barriers and door-monitoring arrangements.

For multi-site companies, consistency is important. If DP92V units are deployed at several locations, standardize model suffixes where requirements are similar, use consistent extension naming and document switch ports and IP addresses. Centralized provisioning capabilities can assist at scale, but the provisioning server and security model must be designed correctly. Syslog and management functions may also help support teams, provided they are integrated into a monitored environment rather than simply enabled without an operational owner.

Power planning deserves special attention for any site where continuity matters. A PoE-powered intercom depends on its switch, the switch depends on upstream power, and the SIP call may depend on a PBX, router and internet path. If the business expects the entrance system to remain usable during outages, calculate backup power for the whole chain rather than placing a small UPS on one component. Door locks and access controllers may have separate battery or UPS requirements, and the desired fail-safe or fail-secure behavior should be defined with the responsible security professional.

Nigeria buyers comparing DP92V quotations should request the same technical scope from each provider: exact variant, quantity, power method, PBX integration, cable installation, lock interface, testing, documentation and training. This prevents a lower device-only quotation from being compared directly with a complete integration proposal. The most useful procurement question is not only the unit price, but what is included to make the entrance work as intended.

Dinstar DP92V SIP Video Intercom Seychelles

In Seychelles, hospitality properties, offices, gated residences used for commercial purposes, service facilities and managed buildings may look for entrance communication that fits a compact IP infrastructure. The DP92V can be useful where a visitor at an external door or gate needs to reach reception, management or security without installing a dedicated proprietary communication network. SIP compatibility allows the design team to evaluate existing IP telephony endpoints as call destinations, while the video element can improve identification and visitor handling.

Coastal and outdoor environments demand careful installation choices. Although the DP92V carries IP65 and IK10 ratings, long-term reliability also depends on mounting practice, cable entry, corrosion exposure, sunlight, water paths and the environmental suitability of the associated lock, enclosure and power equipment. The project should be reviewed as a complete entrance assembly. Where the location is highly exposed, additional architectural protection may be appropriate even when the intercom itself has an outdoor-oriented protection rating.

For smaller properties, a single-button variant can keep the visitor experience simple. For larger properties, a dual-button model can direct calls to two staffed functions if there is a genuine operational need. RFID versions may combine visitor calling with staff credential access. A 4G variant can be considered when cellular connectivity is intentionally required, but wired Ethernet with PoE is often easier to supervise when suitable structured cabling is available. The decision should follow reliability and maintenance goals rather than novelty.

Seychelles procurement teams should provide a site-specific description when requesting a quote. Include whether the entrance is sheltered, the cable distance to the nearest switch, the PBX or answering device, the lock or barrier mechanism, preferred access method and any requirement for video integration with a surveillance platform. This gives the supplier enough information to propose the correct DP92V suffix and the surrounding infrastructure needed for a complete installation.

Related solution planning across the FourTeck network

An intercom project usually touches multiple disciplines. The SIP call path belongs to IP telephony, PoE and VLANs belong to networking, video can touch CCTV or VMS architecture, and the relay or credential side belongs to access control. Buyers planning regional deployments can use the FourTeck Africa technology site for broader multi-country IT context, while the verified Tanzania, Uganda, Kenya and UAE FourTeck sites provide region-specific starting points. These links are included because they relate directly to the surrounding communication, network and security requirements rather than as generic navigation.

For a DP92V project, keep the bill of materials organized by function: intercom terminal, mounting, Ethernet/PoE, PBX or SIP server, answering endpoint, electric lock or barrier interface, exit device, door sensor, network security, UPS and commissioning. This structure makes it easier to identify which components already exist and which must be supplied.

Quotation checklist for Dinstar DP92V

Frequently asked questions

Decision recap

Choose the Dinstar DP92V when the project needs a rugged SIP video entrance terminal with PoE, ONVIF, two-way audio and dedicated access-control interfaces. Select the suffix carefully: button count, RFID and 4G are model-dependent. Confirm the SIP platform, answering endpoint, door hardware, PoE budget and network policy before procurement.

For a consultation, prepare the entrance details and integration requirements rather than only asking for a unit price. A complete brief allows the intercom, PBX, network and access-control components to be designed as one working system.
