Grandstream GWN7801P Tanzania

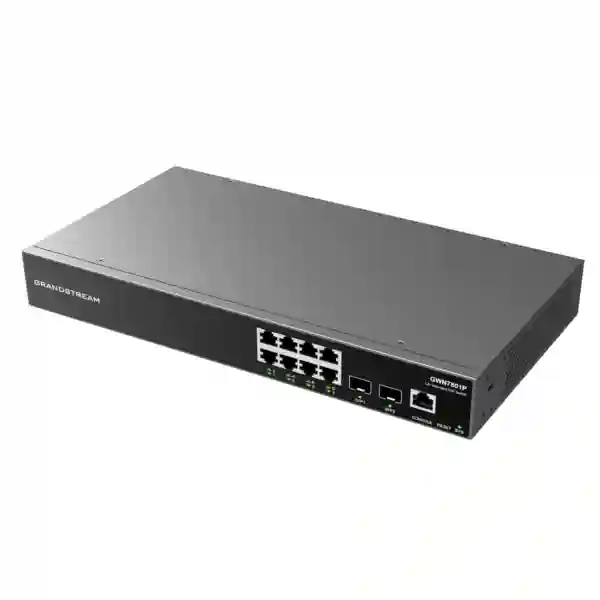

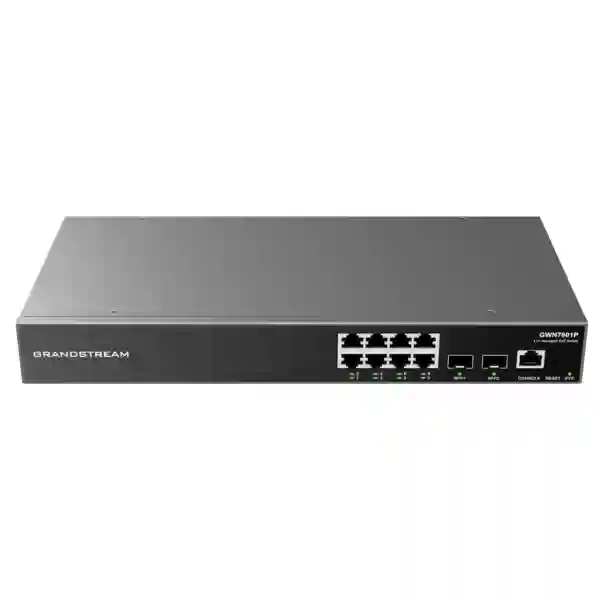

The Grandstream GWN7801P is an 8-port Layer 2+ managed Gigabit PoE switch designed for small and medium business networks that need a compact access switch with intelligent power delivery, traffic segmentation, security controls and flexible management. It combines eight Gigabit Ethernet PoE ports with two Gigabit SFP uplinks, making it suitable for connecting IP phones, Wi-Fi access points, IP cameras, door-access devices and ordinary Ethernet endpoints while retaining fiber-uplink flexibility for a core switch, router or another distribution point.

Grandstream GWN7801P Overview

For organizations planning a managed edge network, the GWN7801P offers a useful balance between port count, PoE capacity and administration features. Grandstream specifies eight Gigabit Ethernet ports, eight PoE-capable ports, two Gigabit SFP ports, up to 120W total PoE output with up to 30W per port, 10Gbps non-blocking throughput, 20Gbps switching capability and a forwarding rate of 14.88 million packets per second. It supports IEEE 802.3af/at PoE, IPv4 and IPv6, VLAN segmentation, voice VLAN functions, link aggregation, spanning-tree technologies, static routing, multicast controls, QoS and access-control mechanisms.

This combination makes the switch especially relevant where data and power need to share the same cabling. A branch office can use the GWN7801P for IP phones and wireless access points; a retail or hospitality site can attach cameras, access points and VoIP endpoints; and a small server room can use the SFP interfaces to connect toward a fiber backbone. The important planning point is power budget: while every access port can provide PoE, the total connected PoE load must remain within the switch’s overall 120W budget.

Key GWN7801P Specifications

Network Control, Security and QoS

A managed PoE switch is valuable when it does more than simply forward Ethernet frames. The GWN7801P supports traffic-segmentation and protection features that allow an administrator to establish policies at the access layer. Its VLAN functions can be used to separate departments, device classes or security zones. Voice VLAN capability is particularly useful when IP telephony shares physical switch infrastructure with computers. QoS features including port priority, queue scheduling, traffic shaping and rate limiting help place latency-sensitive traffic such as voice ahead of less time-sensitive flows where the overall design requires it.

Security capabilities include 802.1X and MAC authentication, RADIUS and TACACS+ integration, storm control, port isolation, port security, sticky MAC, IP source guard, ARP inspection, DHCP snooping and protections against common denial-of-service patterns. These functions should be configured as part of a deliberate network policy rather than enabled blindly. A correct deployment maps each physical endpoint to the intended VLAN, power requirement, authentication policy and traffic profile before production use.

PoE Planning for the GWN7801P

The GWN7801P can power eight endpoints, but port count and power budget are two different limits. Each port can supply up to 30W under the supported PoE standards, while the switch provides 120W total PoE output. A design using eight low-power phones may fit comfortably; a design using multiple high-power access points or cameras may approach the budget much faster. Before ordering, list every intended powered device, its maximum PoE draw, any planned future endpoints and a sensible operating margin. That calculation prevents an installation from reaching the total power ceiling even though unused Ethernet capacity appears to remain.

For mixed deployments, consider which devices truly need switch-supplied power. Desktop computers and many printers do not, while ceiling-mounted access points, IP phones, cameras and door stations often benefit directly from PoE. Centralizing power also makes it easier to protect endpoints through a suitable UPS connected at the communications cabinet, although UPS sizing itself must account for the switch, uplink equipment and the actual PoE load.

Grandstream GWN7801P Tanzania

For buyers in Tanzania, the GWN7801P fits projects where eight powered access ports are enough for the current edge footprint and managed features are required from day one. Typical scenarios include a small company combining IP phones and Wi-Fi access points, a clinic separating staff data from voice and camera traffic, a shop using PoE cameras and a wireless AP, or a branch location that needs a clean uplink toward the main router. The two SFP ports are particularly useful when copper distance limits or building design make fiber the preferred uplink medium.

Procurement should start with endpoint count, not just the switch model. Identify how many phones, cameras, access points and other wired devices will connect now, then estimate growth. Next, calculate the PoE budget and confirm whether the 120W allowance is appropriate. After that, map VLAN requirements, uplink medium, SFP type, rack or desktop placement, UPS capacity and management method. This approach makes a quotation more accurate because it includes the surrounding network components rather than treating the switch as an isolated item.

Organizations standardizing on Grandstream can also evaluate how the switch will work alongside GWN wireless products and Grandstream voice systems. Central management options may simplify multi-device administration, but the actual design still depends on IP addressing, VLAN strategy, upstream routing, DHCP, authentication and security policies. For Tanzania projects, FourTeck can be contacted for model selection, compatibility review and quotation preparation without assuming a particular stock level or delivery date until these are confirmed during the sales process.

Grandstream GWN7801P Dar es Salaam

Businesses in Dar es Salaam often deploy compact managed switches at branch offices, retail outlets, clinics, education facilities, hospitality sites and professional offices where several network services share one communications cabinet. In this context, the GWN7801P can act as an intelligent access switch: its eight Gigabit PoE ports can connect phones, access points and cameras, while VLAN and QoS policies keep device groups logically separated. The two SFP uplinks can support a fiber path to an aggregation point where a building or campus design calls for optical cabling.

A Dar es Salaam buyer should verify the power profile of every attached PoE endpoint. Eight physical PoE ports do not mean eight devices drawing 30W each can be powered simultaneously, because the total budget is 120W. A practical design therefore records each device’s maximum consumption and preserves headroom for startup conditions and future additions. If the site is likely to expand beyond eight access devices, it may be better to select a higher-port GWN model at the design stage rather than create a fragmented switching layout later.

For voice-heavy offices, voice VLAN and QoS features can help structure traffic for IP telephony alongside normal business data. For camera deployments, segmentation can isolate surveillance traffic from user devices. For guest Wi-Fi, VLAN boundaries can keep visitor traffic away from internal resources when the upstream firewall and access points are configured consistently. The GWN7801P therefore works best as part of a complete network policy covering switching, routing, wireless, security and endpoint administration.

Grandstream GWN7801P Mwanza

In Mwanza, the GWN7801P is suitable for organizations that want managed PoE at the edge without moving immediately to a large access switch. A small hotel reception area, office floor, clinic, retail site or education department may need only a handful of powered devices but still require business-grade segmentation. Eight PoE Gigabit ports can consolidate access points, IP phones and cameras, while the SFP interfaces provide a useful option for fiber connectivity to another building area or a central network cabinet.

Planning should include both logical and physical architecture. Logically, decide which VLANs are needed for staff, voice, wireless, cameras, guest access and management. Physically, confirm cable category, run length, patching, earthing practices, cabinet ventilation and power protection. Because PoE moves endpoint power into the communications cabinet, the switch and UPS become more important to service continuity. A power interruption at that cabinet can affect multiple downstream devices at once, so backup-power capacity should be sized against real PoE consumption rather than only the switch’s base load.

When preparing a Mwanza quotation, include compatible SFP modules if fiber uplinks are required, patch cords, rack accessories where applicable, UPS requirements and the exact endpoints intended for PoE. This provides a more meaningful project bill of materials and helps confirm whether 120W is sufficient. For networks expecting substantial growth, assess higher-port alternatives before purchase so the access layer remains simple to manage.

Grandstream GWN7801P Arusha

Arusha businesses in hospitality, tourism support, professional services, retail and administration may need compact switching that can support both data and powered endpoints. The GWN7801P is useful in these designs because it combines PoE/PoE+ access, fiber-capable uplinks and managed Layer 2+ functions. Rather than running separate power adapters for ceiling access points or wall-mounted phones, compatible devices can receive power over the same Ethernet cabling used for data.

The switch’s management functions can help administrators create predictable network behavior. VLANs can segment operational systems from guest or visitor traffic; QoS can prioritize selected voice flows; link aggregation can be considered where the broader topology and upstream equipment support it; and security features such as DHCP snooping, ARP inspection and port controls can form part of a layered access policy. The specific combination should match the environment and should be tested before production deployment.

For Arusha procurement, it is sensible to distinguish between a simple eight-device requirement and a growth-oriented deployment. If a site currently needs seven or eight edge ports, no capacity remains for expansion or temporary devices. Conversely, a site with four or five endpoints may have useful headroom. The right decision depends on projected device count, not only today’s wiring. Buyers should also decide whether management will be local, cloud-based through supported Grandstream services, or integrated into an on-premise operational model.

Grandstream GWN7801P Dodoma

For offices and institutional networks in Dodoma, the GWN7801P can serve as a controlled access-layer switch where a limited number of PoE devices need Gigabit connectivity. The model is relevant to branch offices, meeting spaces, small administrative sites and security-network segments that benefit from eight powered ports and two SFP uplinks. Network teams can use VLANs to separate traffic classes and apply QoS where voice or other priority applications need consistent handling.

A structured deployment begins with an endpoint schedule. Record each connected device, its VLAN, expected bandwidth, PoE class or maximum draw, physical location and business function. This makes configuration easier and highlights whether the 120W power budget and eight access ports remain appropriate after projected expansion. It also helps procurement identify all required accessories, especially SFP transceivers, fiber patch leads, rack hardware and UPS capacity where those are part of the design.

Management choice is another design consideration. The embedded interface may suit a standalone deployment, while supported centralized Grandstream management platforms can be useful when an organization operates multiple GWN devices or sites. Centralized visibility does not remove the need for disciplined configuration, but it can reduce the operational burden of checking device state and maintaining consistent settings across a wider environment.

Grandstream GWN7801P UAE

For UAE projects, the GWN7801P is positioned well for small branch, retail, hospitality and office environments that need eight managed PoE ports rather than a larger access switch. The model’s combination of Gigabit access, two SFP uplinks and a 120W PoE budget can support compact deployments involving IP telephony, Wi-Fi and surveillance endpoints. The same procurement rule applies: calculate endpoint power before confirming the design, because the total budget is shared by all PoE ports.

Organizations comparing options across the region can also review FourTeck’s UAE technology resources at FourTeck UAE for broader networking and infrastructure discussions. Where an installation combines switching with voice, security or wireless infrastructure, the switch should be selected as part of the overall topology rather than as a standalone purchase. VLAN architecture, upstream routing, firewall policy, DHCP design, SFP selection and physical cabling all influence the final result.

For multi-site organizations, standardized switch templates can make deployment and support more predictable. The GWN7801P’s centralized management options may assist this approach when the organization already uses compatible Grandstream networking devices. A proper bill of materials should include switch quantity, endpoint loads, optics, patching, power backup and any configuration or migration work needed for the target site.

Grandstream GWN7801P Uganda

Ugandan businesses considering the GWN7801P can use it as an access switch for offices, shops, clinics, hospitality sites and branch locations where eight PoE interfaces meet the endpoint requirement. Its managed feature set is useful when voice, Wi-Fi, cameras and ordinary business devices must share structured cabling while remaining logically separated through VLANs and policy. Two SFP uplinks give network designers an option for fiber connections in buildings or between suitable distribution points.

For regional network planning and related infrastructure information, buyers can also reference FourTeck Uganda. Before requesting a quotation, prepare the number and type of connected endpoints, their PoE requirements, whether SFP modules are required, and whether management will be local or centralized. This avoids quoting a switch without the components needed to make it usable in the intended topology.

If the site is expected to grow beyond eight access ports, evaluate capacity early. Adding a second small switch later may be reasonable in some layouts, but in others a higher-port switch is cleaner and easier to manage. The correct choice depends on redundancy requirements, uplink design, cabinet space, failure domains and planned growth rather than price alone.

Grandstream GWN7801P Kampala

Kampala offices and commercial sites frequently combine wireless, voice, surveillance and standard Ethernet devices within the same building network. The GWN7801P provides a compact way to bring eight PoE-capable Gigabit access ports under managed control. VLANs can separate traffic types, QoS can prioritize selected applications and SFP uplinks can provide optical connectivity where the building design favors fiber.

In a phone-and-Wi-Fi deployment, for example, ports can be configured to support voice and data segmentation while powering compatible handsets and access points. In a camera-focused deployment, security devices can be isolated from user networks and connected upstream to the appropriate recording or routing environment. These outcomes depend on configuration across the entire network, including firewall, DHCP and endpoint settings, not on the switch alone.

Kampala buyers should calculate both port utilization and watt utilization. A switch can have spare power while running out of physical ports, or spare ports while approaching the 120W PoE ceiling. Documenting both figures during design prevents surprises during expansion. It also makes it easier to determine whether the GWN7801P or a higher-capacity switch is the better fit.

Grandstream GWN7801P Arua

For smaller installations in Arua, the GWN7801P offers a practical managed edge platform when the requirement centers on several powered endpoints rather than dozens of access ports. A branch can connect phones, cameras and access points through the same switch, apply VLAN separation and use the uplink interfaces to connect back toward the site’s router or core network. This can reduce the number of individual power adapters at endpoints and simplify cable management.

The main design question is whether the 120W total PoE budget matches the chosen endpoints. Always use device specifications for the calculation rather than assuming typical draw. High-power devices can consume the budget faster than small desk phones. If a project includes outdoor wireless equipment or other higher-load endpoints, validate every requirement before purchase and preserve appropriate headroom.

Operationally, management can remain local for a simple standalone site or use supported Grandstream centralized management where that fits the organization’s broader architecture. Whichever method is selected, document VLAN IDs, management addresses, uplink configuration, authentication policies and port descriptions so future troubleshooting does not depend on undocumented settings.

Grandstream GWN7801P Mbarara

The GWN7801P can suit Mbarara organizations that need controlled PoE connectivity for a compact site. Its eight Gigabit PoE ports can serve IP phones, wireless access points, cameras and compatible access-control devices, while two SFP ports support uplink flexibility. Managed functions such as VLANs, voice VLAN, QoS, spanning tree and security controls allow the switch to participate in a more structured network than an unmanaged desktop switch.

For branch deployments, define the role of the switch clearly. If it is the only access switch at the site, consider growth, spare ports and the business impact of downtime. If it is one of several switches, confirm spanning-tree behavior, VLAN trunking, uplink redundancy and address management. If fiber is used, ensure the SFP module and fiber type match both ends of the link.

A quotation request should include endpoint quantities, PoE loads, uplink media and distances, required accessories and expected management method. Providing these details allows a supplier or integrator to assess whether the compact GWN7801P is sufficient or whether a larger model is more appropriate for the planned network.

Grandstream GWN7801P Gulu

Gulu businesses, institutions and distributed organizations can consider the GWN7801P where a site requires a modest number of powered network endpoints and centralized configuration features. The model’s eight PoE ports and two SFP uplinks support compact access designs, while advanced switching functions make it possible to separate traffic and apply network policies that would not be available on a basic unmanaged switch.

For an installation serving phones and cameras, VLAN separation can keep surveillance traffic distinct from user devices and voice. For a wireless-focused site, access points can receive power from the switch while trunked VLANs carry staff and guest networks upstream. The exact implementation depends on the access-point capabilities, router or firewall policies and the chosen addressing plan.

Capacity planning remains essential. Check the number of access ports, shared PoE budget, uplink bandwidth and anticipated expansion. Where a switch will be placed in a remote branch, give additional attention to UPS capacity, remote management and clear documentation, because physical intervention may be less convenient than at a central office.

Grandstream GWN7801P Kenya

In Kenya, the GWN7801P fits small office, retail, hospitality and branch deployments that need an eight-port managed PoE switch with fiber uplink options. It can consolidate common edge devices such as IP phones, access points and cameras and apply VLAN or QoS policy to the access layer. The 120W PoE allowance should be evaluated against actual endpoint requirements before the device is selected for a project.

Regional buyers can explore related networking resources through FourTeck Kenya. For procurement, include any required SFP transceivers, patching, backup power and configuration work in the bill of materials. If the switch will connect to an existing core or firewall, confirm VLAN tagging and uplink compatibility so integration is understood before installation day.

Organizations deploying the same branch pattern repeatedly can benefit from a documented standard covering VLAN IDs, port profiles, device naming, management access and firmware processes. Standardization helps keep multiple small sites supportable and reduces configuration drift over time.

Grandstream GWN7801P Kuwait

Kuwait deployments can use the GWN7801P where managed PoE is needed at a compact access layer. Eight powered Gigabit ports are appropriate for smaller device groups, and the pair of SFP uplinks can connect the switch to an upstream distribution layer through fiber when required. The switch’s VLAN, QoS and security controls help network teams implement more deliberate segmentation than a simple unmanaged solution.

For related regional technology requirements, FourTeck Kuwait provides an additional point of reference. Buyers should evaluate whether the switch is serving voice, wireless, surveillance or a mixed workload, because each use case changes PoE consumption and policy requirements. A mixed deployment is common, but it must still remain within the 120W total output and the available port count.

Where a project includes IP telephony, consider voice VLAN, QoS, DHCP options and upstream call-platform connectivity together. For camera systems, consider bandwidth, isolation and recorder paths. For Wi-Fi, consider AP power draw, trunking and guest-network segmentation. Treating these as one network design produces a more reliable outcome than configuring each subsystem independently.

Grandstream GWN7801P Ghana

Ghanaian organizations looking for a compact managed PoE switch can consider the GWN7801P for branch, professional office, hospitality, retail and institutional edge networks. It provides eight Gigabit PoE ports and two SFP uplinks, which can be useful where a small number of endpoints must be powered and managed while an optical uplink connects toward another network point.

For wider regional infrastructure information, see FourTeck Ghana. The switch supports segmentation and protection mechanisms suited to structured business networks, but these features should be matched with the firewall, router and endpoint settings. A secure VLAN design is only effective when traffic paths and access policies are enforced consistently across the network.

Before purchase, count existing endpoints, identify future additions, calculate PoE draw and determine whether any ports will be reserved for non-PoE devices. Confirm the uplink technology and whether optics are needed. These steps make the quotation more complete and reduce the risk of selecting a device that is technically capable but undersized for the actual site.

Grandstream GWN7801P Nigeria

In Nigeria, the GWN7801P can support compact managed networks in offices, retail locations, clinics, hospitality branches and other sites where eight PoE ports provide enough edge capacity. It is particularly relevant when a project combines IP phones, Wi-Fi access points and cameras because these endpoints can share the same switch while being separated logically through VLANs. QoS and access security features provide additional policy control at the edge.

Customers can also review FourTeck Nigeria for related regional IT and networking information. When planning a site, the total PoE requirement should be calculated from manufacturer specifications for the attached devices. This is essential because an eight-port PoE switch can still be power-limited if several endpoints draw close to the maximum supported per-port level.

If a network is likely to add more cameras or access points, growth planning should happen before procurement. Moving to a larger switch can simplify long-term management compared with chaining several undersized devices, although topology, redundancy and budget requirements determine the best approach for each project.

Grandstream GWN7801P Seychelles

For Seychelles businesses and hospitality environments, the GWN7801P can provide managed PoE connectivity in compact network zones such as reception areas, small offices, service buildings or branch sites. Eight PoE Gigabit interfaces are well suited to a limited cluster of phones, access points or cameras, and two SFP ports offer flexibility when an optical uplink is desirable within the property network.

Hospitality and guest-network environments benefit from careful segmentation. Staff systems, guest Wi-Fi, voice services, surveillance and management traffic can be assigned to separate VLANs where the wider network design supports it. QoS can prioritize business-critical or latency-sensitive flows. Security features at the switch edge can supplement upstream firewall policy, but they should be configured as part of one coordinated architecture.

For island deployments, procurement planning should be especially complete before equipment is dispatched. Confirm optics, fiber type, cable accessories, PoE demand, spare capacity, management method and backup-power requirements in advance. This reduces the chance that a small missing component delays commissioning and helps ensure the selected switch is sized for the intended lifespan of the installation.

Compatibility and Integration Guidance

The GWN7801P is standards-based for Ethernet, VLAN and PoE functions, but compatibility should still be validated at the system level. For PoE, confirm that endpoints accept IEEE 802.3af or 802.3at power within the required wattage. For SFP uplinks, select transceivers that match fiber type, wavelength, connector, distance and the equipment at the far end. For VLANs, ensure the upstream firewall, router, wireless access points and any voice system use consistent tagging and addressing.

Where Grandstream IP phones or wireless products are used, the broader GWN and Grandstream ecosystem can simplify administration, but network design remains vendor-independent in principle: clear addressing, correct VLAN tagging, secure management access and documented policies matter regardless of endpoint brand. Firmware should be maintained according to the vendor’s current support guidance and changes should be tested where service continuity is important.

How to Choose the Right Switch Size

Choose the GWN7801P when eight access ports are enough and the 120W PoE capacity fits the powered-device plan. If most ports will be occupied immediately, consider whether expansion is likely. A design using seven ports on day one has little physical headroom even if the PoE budget is lightly used. Similarly, a design using only five ports could still approach the power ceiling if the endpoints are high-draw PoE+ devices.

Think in four dimensions: port count, power budget, uplink requirement and policy complexity. Port count determines how many devices attach directly. Power budget determines how many powered devices can run within their combined consumption. Uplink requirement determines whether Gigabit SFP is sufficient and what optics are needed. Policy complexity determines whether the required VLANs, QoS, authentication and security controls are supported and practical to operate. This checklist makes model selection more reliable than buying purely by the number of RJ45 sockets.

Use Cases

Quotation Checklist

Frequently Asked Questions

Decision Recap

The Grandstream GWN7801P is a strong fit for a compact managed access network requiring eight Gigabit PoE ports, two Gigabit SFP uplinks, a 120W shared PoE budget and business switching features including VLANs, QoS, multicast controls and security mechanisms. Its value is greatest when these capabilities are matched to a planned network architecture rather than used as an unmanaged plug-and-play device.

Choose it when the endpoint count, power budget and uplink speed fit the project. Move to a larger switch when growth, PoE demand or access-port requirements exceed this envelope. For a Tanzania quotation, provide endpoint quantities, PoE loads, uplink needs and expected growth so the full network bill of materials can be reviewed.

Talk to FourTeck about the GWN7801P

Contact FourTeck to discuss the Grandstream GWN7801P for a new deployment, branch refresh, VoIP network, Wi-Fi rollout or surveillance edge. Share your device list and topology requirements so the sales team can help prepare an appropriate quotation and accessory list.
