Grandstream GWN7802P Pro Tanzania

What the Grandstream GWN7802P Pro Solves

A modern office network often has more powered endpoints than traditional desktop-only networks. Wireless access points, IP surveillance cameras, video phones, VoIP handsets, door access controllers, paging devices, and AV-over-IP endpoints can all depend on Power over Ethernet. The GWN7802P Pro helps reduce separate power adapters and local electrical dependencies by supplying network connectivity and PoE from the switching layer. Its PoE++ capability is especially relevant for devices that require more power than conventional 802.3af endpoints, while the 250W total budget gives network designers room to mix endpoint classes within a realistic small or medium site.

The two 10Gbps SFP+ uplinks help avoid a common edge-switch bottleneck. Sixteen 1Gbps client ports can collectively generate substantially more traffic than a single 1Gbps uplink can comfortably carry. Using 10Gbps fiber or compatible uplink modules allows the switch to connect into a faster aggregation layer, server room, or distribution switch. For businesses deploying high-resolution surveillance, dense wireless environments, conferencing, or centralized storage, this faster uplink capability can be important to overall network responsiveness.

Advanced Network Control and Security

The GWN7802P Pro supports enterprise switching functions for traffic segmentation, quality control, multicast optimization, and access protection. VLAN capabilities include 802.1Q tagging, port-based VLANs, MAC-based VLANs, protocol-based VLANs, QinQ, VLAN translation, voice VLAN, and up to 4K VLANs. Spanning-tree support includes STP, RSTP, MSTP, PVST+, and RPVST+, while link aggregation can combine connections using static aggregation or LACP. These tools allow administrators to separate voice, surveillance, staff, guest, management, and other traffic classes while designing resilience into the LAN.

Security functions include 802.1X and MAC authentication, RADIUS and TACACS-based AAA, DHCP snooping, IP and IPv6 source guard, Dynamic ARP Inspection, DoS protection, port isolation, sticky MAC support, port security, loop protection, and firmware signature checks. ACLs can be applied to Ethernet, IPv4, and IPv6 traffic. Together, these controls make the switch suitable for organizations that want more than basic connectivity and need policy enforcement at the access layer.

QoS, Multicast and Pro AV

Voice, video, surveillance, and real-time applications are sensitive to delay and congestion. The switch supports port priority, 802.1p mapping, DSCP mapping, IP precedence mapping, multiple queue scheduling methods, traffic shaping, and rate limiting. IGMP and MLD snooping help manage multicast traffic more efficiently. Grandstream also includes Pro AV functionality in the GWN7800 Pro family, with templates and profiles intended for professional AV environments such as AES67, Dante, NDI, conferencing, enterprise media, education, and similar multicast-heavy deployments. These capabilities can be valuable when the switch is used as part of an integrated communications or AV network rather than simply as a desktop access switch.

Management Options

Administrators can manage the GWN7802P Pro through the embedded local Web UI, Grandstream GDMS Networking cloud management, GWN Manager on-premises software, supported GWN Series Routers, CLI, and SNMP. This range of choices lets a smaller business manage a single switch locally while allowing multi-site organizations or integrators to adopt centralized monitoring and configuration. Operational features include CPU and memory monitoring, NTP, syslog, RMON, LLDP and LLDP-MED, backup and restore, ping, traceroute, cable diagnostics, port mirroring, packet capture, sFlow, firmware upgrade mechanisms, and alerting.

Technical Specifications

Related FourTeck Network Resources

Organizations building a broader network can explore FourTeck Tanzania for regional IT infrastructure requirements, FourTeck Uganda for East African projects involving Uganda, FourTeck Kenya for Kenya-focused deployments, FourTeck UAE for UAE procurement and infrastructure planning, and FourTeck Africa for wider multi-country technology projects. These links can help procurement teams coordinate related switching, wireless, IP telephony, security, and infrastructure requirements across multiple markets.

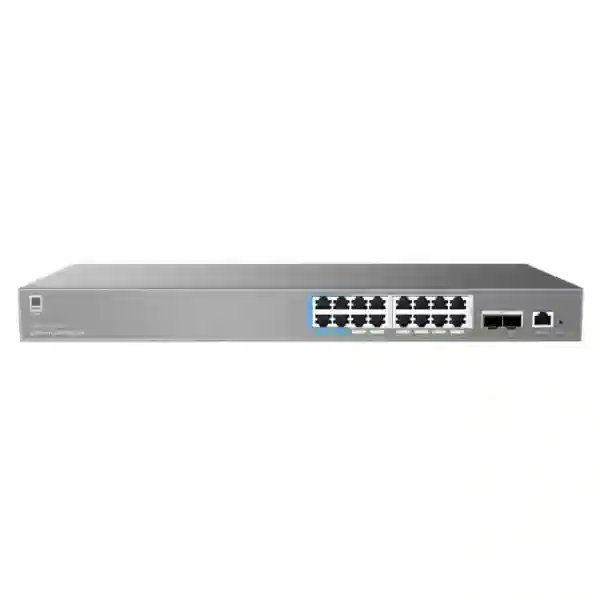

Grandstream GWN7802P Pro Tanzania

For organizations in Tanzania, the Grandstream GWN7802P Pro is a practical option when a network needs to combine managed Gigabit access, high-powered PoE, and faster uplinks in a single rack-mountable switch. A Tanzanian office may use the sixteen access ports for a mix of IP phones, Wi-Fi access points, security cameras, printers, desktop computers, access-control devices, meeting-room equipment, and other Ethernet endpoints. Because every access port is PoE capable, the network designer can decide which devices should receive power from the switch while keeping other ports available for non-PoE devices. This flexibility is useful for growing networks where endpoint types change over time.

The 250W total PoE budget should be considered during procurement rather than looking only at the number of PoE ports. A deployment with sixteen low-power phones can have very different power requirements from a deployment with multiple high-performance wireless access points, PTZ cameras, or AV endpoints. Buyers should list each intended device, its expected PoE class or maximum draw, and any future expansion before selecting the switch. This makes quotation preparation more accurate and helps avoid overloading the available power budget. The GWN7802P Pro’s support for IEEE 802.3af, 802.3at, and 802.3bt provides broad PoE compatibility, but the endpoint requirement still needs to be checked individually.

The two 10Gbps SFP+ uplinks are also relevant in Tanzania for offices with centralized servers, NVR storage, inter-floor fiber, or high-density wireless networks. They allow the access switch to connect to a faster distribution layer and help reduce congestion created by many active Gigabit endpoints. For a new deployment, procurement teams should confirm the required fiber type, SFP+ transceiver compatibility, patching method, rack space, UPS sizing, ventilation, and management approach. Businesses that already use Grandstream Wi-Fi or communications products may also benefit from the shared management ecosystem through GDMS Networking and GWN Manager. A quote should therefore consider not just the switch itself but the required optics, patch leads, rack accessories, UPS capacity, cabling, configuration, and endpoint power needs.

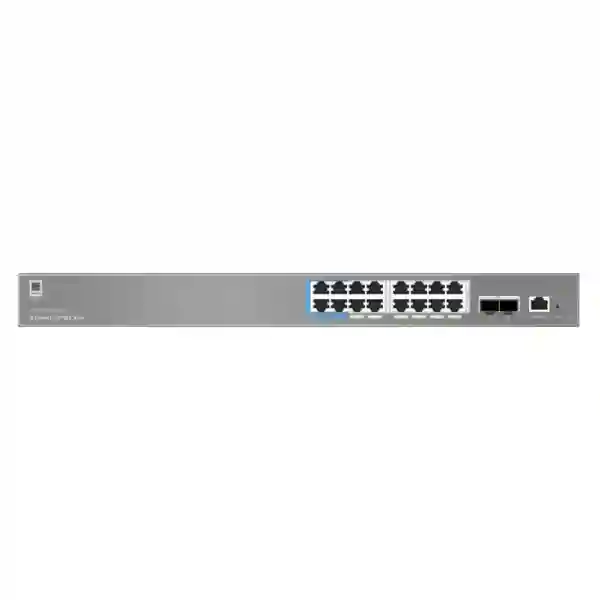

Grandstream GWN7802P Pro Dar es Salaam

Dar es Salaam businesses commonly operate environments where communications, wireless connectivity, surveillance, and business applications all share the same structured cabling infrastructure. The Grandstream GWN7802P Pro can serve as a managed access-layer switch for offices, hospitality sites, retail operations, professional services firms, schools, clinics, warehouses, and branch locations that require both data and PoE. Its sixteen Gigabit ports suit medium-density closets where an unmanaged switch would not provide enough policy control, while the two 10Gbps SFP+ ports can connect upstream to a core switch, another building, or a server-room aggregation layer using appropriate fiber or copper modules.

For a Dar es Salaam site, heat, rack ventilation, UPS planning, cable quality, and physical installation should be treated as part of the network design. Grandstream specifies an operating range of 0°C to 45°C for the model, so equipment rooms should be planned to remain within vendor conditions. A UPS can help protect the switch and preserve power to connected IP phones, cameras, or access points during short power interruptions, but UPS capacity should be selected from the actual switch load and PoE demand rather than from a generic rule. The switch supports surge protection features, yet proper grounding and broader electrical protection remain important for business infrastructure.

Managed features allow Dar es Salaam administrators to separate office users, guest Wi-Fi, voice, CCTV, and management traffic using VLANs. QoS can prioritize voice and latency-sensitive applications, while DHCP snooping, ARP inspection, source guard, 802.1X, port security, and ACLs can strengthen access-layer security. For larger sites, the switch can be centrally managed through GDMS Networking or GWN Manager, simplifying monitoring across multiple network closets or branches. When requesting a quotation, buyers should identify the endpoint count, PoE devices, uplink medium, VLAN plan, desired management method, rack requirements, and whether configuration assistance is needed. This creates a more complete bill of materials and reduces the risk of missing optics, patching, or power accessories.

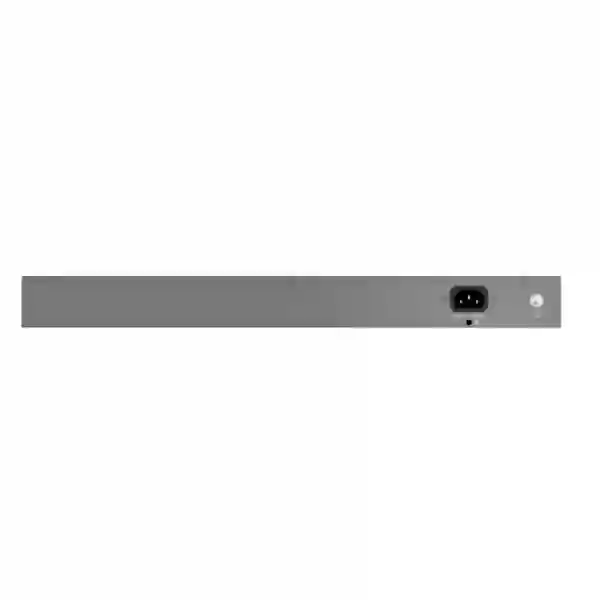

Grandstream GWN7802P Pro Mwanza

In Mwanza, the Grandstream GWN7802P Pro can support organizations that need a managed network platform for branch offices, education, healthcare, hospitality, retail, security systems, and professional services. Its sixteen Gigabit PoE ports allow a network closet to power and connect a balanced set of devices without adding separate injectors for each endpoint. This can simplify deployments that combine wireless access points, VoIP phones, IP cameras, intercoms, or other compatible powered devices. Because the switch also supports ordinary Gigabit Ethernet endpoints, the same unit can serve computers, printers, local servers, controllers, or uplink-connected equipment as part of a mixed environment.

Network planning in Mwanza should focus on both capacity and resilience. The 72Gbps switching capability provides non-blocking performance appropriate to the model’s port configuration, while the dual 10Gbps SFP+ interfaces offer fast upstream connectivity. Organizations with video surveillance or centralized data storage can benefit from placing high-bandwidth traffic onto 10G uplinks instead of forcing all access traffic through a slower backbone. Link aggregation can be used where the broader design supports it, and spanning-tree options help control loops in networks with redundant paths. Static routing functions can also simplify communication between network segments in smaller designs that do not require a dedicated routing platform for every local VLAN.

For procurement, Mwanza customers should evaluate how much PoE power each intended endpoint needs, whether 10G optics are required, what fiber type already exists, and whether the switch will operate as a standalone managed unit or under centralized Grandstream management. The 250W total PoE budget can be ample for many mixed office deployments, but power calculations should be based on endpoint specifications and growth plans. Network documentation should include VLAN IDs, management IP addressing, uplink configuration, PoE priorities, device labels, and backup configurations. These practices help make troubleshooting easier and support future expansion when additional wireless coverage, cameras, or communications endpoints are introduced.

Grandstream GWN7802P Pro Arusha

Arusha organizations often need networks that support hospitality, tourism, business offices, education, retail, healthcare, and distributed operations. The GWN7802P Pro is well suited to sites where a compact managed switch must provide both connectivity and power to endpoint devices. Sixteen Gigabit Ethernet ports give administrators enough density for a departmental or floor-level switch, while PoE++ support expands the range of powered devices that can be connected. Typical deployments may include access points, voice handsets, cameras, reception-area devices, conferencing endpoints, and general LAN equipment, all managed through a common switching platform.

The switch’s advanced VLAN support is particularly valuable for hospitality and visitor-facing networks because staff, guest, voice, surveillance, and management traffic can be segmented rather than sharing one broadcast domain. Guest Wi-Fi traffic can be isolated from internal office resources, surveillance devices can be placed into dedicated VLANs, and voice endpoints can use voice VLAN functions with QoS prioritization. Security controls such as DHCP snooping, ARP inspection, source guard, port security, 802.1X, and ACLs provide additional tools for controlling access at the wired edge. These features do not replace firewall policy, but they strengthen the local network architecture.

For Arusha deployments, the two 10Gbps SFP+ uplinks can connect the switch to a building backbone, server room, or another managed switch using suitable optics and fiber. Buyers should verify whether existing cabling is single-mode or multimode, confirm transceiver requirements, and consider whether uplink redundancy or link aggregation is part of the design. The switch’s management flexibility also allows either local administration or centralized management through GDMS Networking or GWN Manager. When preparing a request for quotation, organizations should provide endpoint quantities, PoE requirements, fiber distances, rack details, UPS expectations, VLAN needs, and any desired installation or configuration scope so the solution can be sized around the actual site rather than only the port count.

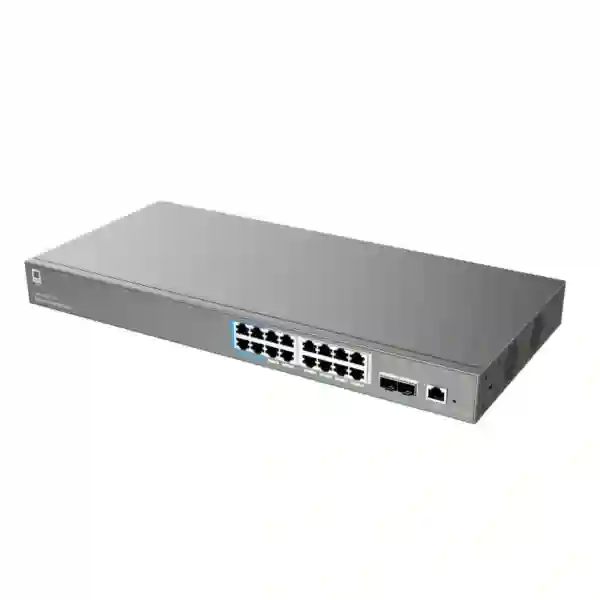

Grandstream GWN7802P Pro Dodoma

For offices and institutions in Dodoma, the Grandstream GWN7802P Pro can provide a controlled access layer for networks that must combine wired users, wireless coverage, IP telephony, surveillance, and operational devices. The model’s sixteen PoE-capable Gigabit ports suit medium-sized network closets and branch environments where administrators require more visibility and control than an unmanaged switch can offer. Dual 10Gbps SFP+ uplinks create a clear path to a higher-speed backbone, which can be important when multiple departments or traffic types converge toward centralized servers, internet gateways, recording systems, or cloud-connected services.

Public-sector, education, professional, and commercial organizations can use VLANs to separate departments and device groups, while QoS can prioritize communications and other latency-sensitive traffic. The switch provides multiple authentication and access-control mechanisms, including 802.1X, MAC authentication, RADIUS, TACACS, port security, and ACL functions. DHCP snooping and ARP inspection help protect against common local-network attacks, and source guard can restrict unauthorized address use. These capabilities are most effective when they are implemented as part of a documented network policy and coordinated with firewall, wireless, and endpoint security controls.

Power planning is a central consideration for Dodoma buyers. The switch can deliver up to 250W of total PoE output, with supported ports capable of higher per-port power under IEEE 802.3bt. A network with many high-power endpoints may therefore need a detailed PoE budget calculation. Buyers should also plan UPS runtime based on the combined switch and endpoint load. For installations using fiber uplinks, the required SFP+ modules and patch cords should be added to the bill of materials. Centralized management through GDMS Networking or GWN Manager can be useful where an organization operates more than one branch or wants remote monitoring, configuration backup, and firmware administration. A complete procurement request should include port count, endpoint type, cable distances, uplink media, PoE demand, and desired support scope.

Grandstream GWN7802P Pro UAE

In the UAE, the Grandstream GWN7802P Pro is relevant for offices, retail locations, hospitality environments, education, healthcare, warehouses, SMB server rooms, and branch networks that need managed PoE switching with faster uplinks. Sixteen Gigabit ports provide a practical access layer for IP phones, cameras, wireless access points, door controllers, AV endpoints, and standard data devices. The dual 10Gbps SFP+ uplinks make the model suitable for connecting into faster aggregation or core infrastructure, especially in sites where surveillance, wireless, and business applications generate sustained traffic.

UAE deployments often include structured rack environments, centralized UPS systems, fiber backbones, and multiple network services sharing the same physical infrastructure. The GWN7802P Pro’s VLAN, QoS, multicast, ACL, and access-security functions allow engineers to create logical separation between voice, corporate data, guest connectivity, CCTV, and building systems. Pro AV capabilities can also be relevant to meeting rooms, event environments, education spaces, digital media systems, and enterprise conferencing where multicast behavior and low-latency traffic need careful handling. The switch supports PTP-related functionality and multicast optimization features that can assist appropriately designed professional AV networks.

For UAE procurement, buyers should avoid assuming that all sixteen PoE ports can simultaneously deliver maximum per-port power. The total available PoE budget is 250W, so endpoint calculations remain necessary. Network designers should also confirm SFP+ optics, fiber standards, rack depth, patch-panel design, grounding, and environmental conditions. Centralized management through GDMS Networking or GWN Manager can reduce administration effort in multi-site environments, while CLI and SNMP support can fit more traditional network operations. FourTeck UAE resources can help coordinate related network infrastructure planning, but availability, commercial terms, installation, and support scope should be confirmed at quotation stage for the specific project.

Grandstream GWN7802P Pro Uganda

For Uganda, the GWN7802P Pro offers a managed switching platform for businesses and institutions that need PoE for communications, surveillance, and wireless infrastructure while retaining enterprise-oriented traffic control. The sixteen Gigabit access ports can support a mix of powered and non-powered devices, and the dual 10Gbps SFP+ uplinks allow higher-speed connectivity to aggregation switches, server rooms, or fiber backbones. This configuration is useful for branch offices, schools, clinics, hospitality, retail, NGOs, professional services, and other organizations that want a manageable network without immediately moving to a larger 24-port or 48-port access switch.

Ugandan buyers should treat the switch as part of a complete network design rather than a standalone component. The required PoE load depends on endpoint models, and the 250W total budget needs to accommodate both current devices and reasonable expansion. Wireless access points and cameras can vary significantly in power draw, so each device should be checked against its vendor specifications. The same applies to SFP+ optics: module type, wavelength, fiber type, connector standard, and distance must match the actual link. A bill of materials may therefore include the switch, transceivers, patch leads, rack hardware, UPS capacity, copper patching, labeling, and configuration services.

From a management perspective, local Web UI administration is appropriate for a single site, while GDMS Networking or GWN Manager can be more efficient for multiple switches or branches. VLANs can separate guest, employee, voice, surveillance, and management traffic; QoS can prioritize real-time applications; and security functions such as DHCP snooping, ARP inspection, 802.1X, port security, and ACLs can improve edge control. Organizations planning deployment across Uganda can also use FourTeck Uganda resources for region-focused infrastructure coordination. Final availability, logistics, installation, and support should be confirmed against the specific project location and requested scope.

Grandstream GWN7802P Pro Kampala

Kampala offices and commercial sites that are expanding wireless, CCTV, and IP communications can use the Grandstream GWN7802P Pro as a controlled access switch with sufficient PoE density for a medium network zone. Sixteen Gigabit ports allow a single switch to connect user devices and infrastructure endpoints, while the two SFP+ uplinks can carry aggregated traffic toward a faster core. This is particularly helpful in offices where numerous access points and cameras are active at the same time and where a 1Gbps uplink could become a limiting factor.

The switch’s segmentation capabilities enable Kampala network administrators to design separate VLANs for employee data, voice, guest Wi-Fi, surveillance, building systems, and switch management. Traffic-prioritization tools can protect the quality of voice and video under load, while multicast snooping helps control unnecessary flooding from multicast applications. Security features can be layered into the access network through 802.1X, RADIUS, TACACS, port security, source guard, DHCP snooping, ARP inspection, and ACL policies. For organizations with compliance or operational requirements, these controls provide more granular governance than a basic smart or unmanaged switch.

Before procurement, Kampala buyers should calculate PoE demand and confirm whether any endpoint requires 802.3bt power. The maximum total PoE output is 250W, so a detailed endpoint schedule is useful. The switch dimensions and rack-mount support should be checked against the target cabinet, and UPS capacity should be chosen from the expected electrical load. Where SFP+ uplinks are required, the correct transceivers and fiber patch leads should be specified at the same time. Administrators can manage the switch locally or centrally through Grandstream platforms. A well-prepared quotation request should include endpoint counts, expected PoE power, fiber distance, rack details, VLAN requirements, and the intended management method.

Grandstream GWN7802P Pro Arua

In Arua, the Grandstream GWN7802P Pro can provide a compact enterprise-style switching platform for organizations that want to power network endpoints and introduce stronger LAN management at the same time. A branch office, school, clinic, hospitality property, NGO site, retail operation, or surveillance installation may use its sixteen Gigabit Ethernet ports for IP phones, cameras, access points, computers, printers, and specialized Ethernet devices. Because the switch supports PoE, PoE+, and PoE++, it offers flexibility across different endpoint power classes, while the 250W total PoE budget provides a defined capacity that should be allocated carefully.

The two 10Gbps SFP+ uplink interfaces can be especially useful where the access switch must connect over fiber to another building, a main equipment room, or a central aggregation switch. Fiber planning should consider actual distance, cable type, transceiver specification, and connector format. If the site uses only copper uplinks today, procurement teams can still value the SFP+ ports as a future expansion path, but they should avoid buying unnecessary optics until the design is clear. Likewise, if the network has fewer powered endpoints initially, unused PoE capacity can support later cameras, access points, or phones without changing the switching platform immediately.

Managed switching functions provide Arua administrators with VLAN segmentation, QoS, static routing, multicast controls, access authentication, ACLs, and multiple protections against common local-network problems. These features can improve manageability when the network grows beyond a flat LAN. Central management through GDMS Networking or GWN Manager can be useful where Arua is one of several organizational sites. For quotation planning, buyers should document port usage, PoE wattage, VLAN needs, uplink requirements, rack and UPS constraints, and desired implementation assistance. This approach helps match the product to the site’s real operational requirements instead of selecting only by port count.

Grandstream GWN7802P Pro Mbarara

Mbarara organizations can use the Grandstream GWN7802P Pro when they need a business-class access switch that supports powered endpoints, segmented traffic, and high-speed uplinks. Sixteen Gigabit PoE-capable ports make the model suitable for offices, education, retail, hospitality, healthcare, surveillance, and branch operations with moderate port density. A typical deployment could connect several IP phones, wireless access points, IP cameras, desktop systems, printers, and room devices while keeping network management centralized. The ability to deliver IEEE 802.3af/at/bt power gives the network designer more endpoint flexibility than a PoE-only switch.

A key planning consideration is the 250W shared PoE budget. If a site has several power-hungry devices, the total load should be calculated before installation. The switch allows power priorities and management controls that can help administrators manage limited power resources, but procurement should still start with accurate endpoint requirements. The two 10Gbps SFP+ interfaces provide a high-capacity route from the access layer to servers or aggregation infrastructure. For fiber use, optics and cabling must be selected to match distance and media. For copper-only sites, those uplinks can remain available for future backbone upgrades.

Mbarara networks can also benefit from VLANs, voice VLAN features, QoS, multicast controls, and security functions such as 802.1X, DHCP snooping, ARP inspection, source guard, ACLs, and port security. These capabilities support a structured design in which staff, guest, CCTV, voice, and management systems do not all share one unrestricted LAN. Administrators can manage the switch through its Web UI, CLI, SNMP, GDMS Networking, GWN Manager, or supported GWN routing platforms. A comprehensive request for quote should identify the endpoint schedule, PoE load, uplink plan, rack space, UPS requirements, and whether configuration or deployment guidance is required.

Grandstream GWN7802P Pro Gulu

For Gulu-based deployments, the GWN7802P Pro can act as a versatile managed edge switch for organizations moving from simple connectivity toward a more structured, secure, and centrally managed LAN. Sixteen Gigabit access ports offer enough capacity for many branch, departmental, and small-campus zones, and all sixteen can provide PoE according to supported standards. This enables one switch to serve communications, security, wireless, and general data endpoints. The two 10Gbps SFP+ ports support high-speed upstream connections that can be valuable where cameras, access points, and local users generate significant aggregate traffic.

Gulu buyers should consider environmental and power conditions as part of deployment planning. The switch is specified for operation from 0°C to 45°C, and its installation should provide suitable airflow. A properly selected UPS can maintain switching and PoE to essential endpoints during brief interruptions, but runtime calculations need the expected electrical load. PoE design should start from the endpoint list because the total available budget is 250W. High-power cameras, wireless devices, and specialized endpoints may consume substantially more than ordinary IP phones, so a simple port-count calculation is not enough.

The managed feature set supports VLAN separation, QoS, multicast control, static routes, link aggregation, spanning-tree protocols, authentication, ACLs, and access-layer security protections. These tools allow Gulu organizations to create a network that can grow in a controlled way. Centralized management can also simplify operations where a business has sites in Gulu and other Ugandan cities. During procurement, include expected endpoint types, required fiber uplinks, SFP+ modules, rack accessories, UPS sizing, VLAN requirements, and preferred management method. This makes it easier to produce a solution-oriented quotation and reduces the likelihood that important supporting components are overlooked.

Grandstream GWN7802P Pro Kenya

In Kenya, the Grandstream GWN7802P Pro fits commercial and institutional networks that need a manageable 16-port PoE edge switch with fast 10G uplinks. Offices, schools, hospitality businesses, clinics, warehouses, retail sites, security deployments, and branch environments can use the switch to consolidate IP phones, Wi-Fi access points, cameras, computers, printers, and other Ethernet devices. Its PoE++ support enables compatibility with higher-powered endpoint classes, and the 250W total PoE budget can support a practical mix of devices when the power allocation is planned correctly.

The switch’s dual 10Gbps SFP+ uplinks are relevant for Kenyan sites with fiber backbones, central servers, high-resolution CCTV, dense wireless usage, or multi-floor buildings. Rather than constraining all access traffic to a single Gigabit uplink, the design can use a faster backbone and, where appropriate, link aggregation. VLANs and QoS help organize traffic so voice, guest access, surveillance, and corporate applications can follow distinct policies. DHCP snooping, ARP inspection, source guard, port security, ACLs, and authentication mechanisms add protection at the switching layer.

Organizations with multiple Kenyan sites may prefer centralized management through GDMS Networking or GWN Manager, while smaller installations can use the local Web UI or CLI. SNMP support also allows integration with broader monitoring platforms. Procurement should include a detailed port schedule and PoE calculation, plus the correct SFP+ optics, patch cords, rack mounting, grounding, and UPS provisions. Where a project is expanding from an existing network, engineers should confirm compatibility with current VLAN conventions, routing, transceiver standards, and management processes. FourTeck Kenya resources can support Kenya-focused infrastructure discussions, with final commercial terms and project scope confirmed through quotation.

Grandstream GWN7802P Pro Kuwait

Kuwait businesses that require a compact managed PoE switch for office, retail, hospitality, surveillance, education, or branch environments can consider the Grandstream GWN7802P Pro. The model delivers sixteen Gigabit Ethernet access ports, two 10Gbps SFP+ uplinks, and a 250W PoE budget in a rack-mountable form factor. This combination is useful where a single switch must power and connect IP phones, cameras, wireless access points, and other compatible endpoints while also supporting ordinary Ethernet users and a high-speed upstream connection.

In professionally installed Kuwait networks, structured cabling, rack design, UPS systems, environmental control, and fiber uplinks are often important parts of the overall solution. The switch should be specified with appropriate SFP+ optics for the actual fiber type and link distance. Power planning should calculate each connected device rather than assuming all ports use the same wattage. The switch can provide up to 60W on an individual supported port but is constrained by the 250W total PoE output budget, so endpoint mix determines the real usable density at higher power classes.

The GWN7802P Pro provides advanced segmentation and security tools that help administrators keep different business systems logically separate. Voice VLAN, 802.1Q VLANs, QoS, multicast snooping, ACLs, 802.1X, RADIUS, TACACS, DHCP snooping, ARP inspection, and source guard can all play roles in a controlled access-layer design. Management choices include Web UI, GDMS Networking, GWN Manager, CLI, and SNMP. For quotation preparation, Kuwait buyers should provide the intended endpoint list, expected PoE draw, fiber specification, rack and UPS requirements, VLAN structure, and preferred management approach. Availability, installation, and support arrangements should be confirmed specifically for the project rather than assumed from the model specification alone.

Grandstream GWN7802P Pro Ghana

For Ghanaian organizations, the Grandstream GWN7802P Pro provides a balanced 16-port managed switching option for sites that need both PoE and enterprise-style network controls. It can support a branch office, school, healthcare site, retail operation, hospitality environment, warehouse, surveillance system, or professional office where network endpoints include phones, access points, cameras, computers, printers, and controllers. The ability to power endpoints from the switch can simplify electrical arrangements at device locations and centralize backup power when the switch itself is connected to an appropriately sized UPS.

The dual 10Gbps SFP+ uplinks give Ghana deployments a path to higher-capacity backbone connectivity. This is useful in networks with significant video, wireless, or server traffic and can reduce congestion compared with a 1Gbps-only upstream design. Fiber modules must be chosen according to media type and distance, while the switch’s VLAN, link aggregation, spanning-tree, and static-routing functions give engineers tools for structuring the LAN. QoS and multicast controls are valuable where the network carries voice, conferencing, surveillance, or professional AV traffic alongside ordinary data.

Security at the access layer can be strengthened through port security, 802.1X, MAC authentication, DHCP snooping, Dynamic ARP Inspection, IP source guard, ACLs, and AAA integrations. For distributed Ghanaian organizations, GDMS Networking or GWN Manager can simplify centralized management, while the local Web UI remains useful for standalone deployments. Before requesting a quote, customers should prepare a list of devices, PoE wattage, required uplink speed, fiber distances, rack and UPS constraints, and desired VLAN or configuration requirements. FourTeck Ghana resources can assist with broader regional infrastructure discussions, while commercial availability and implementation scope should be confirmed for the specific project.

Grandstream GWN7802P Pro Nigeria

In Nigeria, the Grandstream GWN7802P Pro can serve as a capable managed access switch for offices, schools, hotels, healthcare environments, warehouses, retail sites, surveillance projects, and branch networks. Sixteen Gigabit Ethernet ports provide a useful density for a floor, department, or smaller site, and each can support PoE according to IEEE 802.3af/at/bt. This allows the switch to power communications and infrastructure endpoints while also carrying their data. The two 10Gbps SFP+ uplinks offer faster connections to aggregation or core infrastructure and are particularly relevant where multiple cameras, access points, and users generate high aggregate traffic.

Power continuity is an important design topic for many Nigerian network environments. The GWN7802P Pro can centralize power delivery to connected PoE devices, which means an appropriately sized UPS supporting the switch can also help keep those endpoints online for a period during interruptions. UPS sizing should consider actual switch consumption plus the PoE load. The total PoE budget is 250W, and high-power endpoints can reduce the number of devices that can be powered simultaneously. Accurate endpoint wattage therefore matters more than simply counting ports.

The switch supports VLAN segmentation, advanced QoS, multicast management, ACLs, link aggregation, spanning tree, static routing, 802.1X, RADIUS, TACACS, DHCP snooping, ARP inspection, source guard, and other access-security functions. These capabilities can help Nigerian organizations build more structured networks with separate policies for staff, guests, voice, CCTV, and management systems. Centralized management through GDMS Networking or GWN Manager can be useful for multi-site businesses. A complete quotation request should specify endpoint types, PoE requirements, fiber and SFP+ needs, rack conditions, UPS expectations, VLAN structure, and implementation scope. FourTeck Nigeria resources can support Nigeria-focused technology planning, subject to project-specific availability and commercial confirmation.

Grandstream GWN7802P Pro Seychelles

Seychelles businesses and institutions can use the Grandstream GWN7802P Pro for managed network environments where reliable PoE, segmentation, and fast uplinks are required in a relatively compact port count. Hospitality properties, offices, retail facilities, education sites, healthcare locations, and security systems may need a single switching platform to connect access points, IP phones, cameras, computers, controllers, and room devices. Sixteen Gigabit access ports provide practical density, while PoE++ capability allows the switch to support a wider range of powered endpoints than lower-power PoE models.

The two 10Gbps SFP+ uplinks can support fiber connectivity between network closets, buildings, or a central equipment room. In island environments, careful planning of spare optics, patch leads, power protection, and replacement components can be useful because procurement lead times may differ from larger markets. However, stock and delivery time should always be confirmed at quotation stage rather than assumed. The switch’s 250W total PoE budget should also be planned against the actual endpoint schedule. If a project includes multiple high-power wireless or camera devices, network designers should calculate worst-case draw and include an appropriate margin.

Operationally, VLANs can separate guest, staff, voice, CCTV, and management systems, while QoS can prioritize real-time traffic. Multicast controls and Pro AV support can be relevant to hospitality entertainment, conferencing, education, or event environments. Security tools such as 802.1X, DHCP snooping, ARP inspection, source guard, port security, and ACLs strengthen the access layer. Management through Web UI, GDMS Networking, GWN Manager, CLI, or SNMP gives Seychelles administrators flexibility for both local and remote operations. A project quote should therefore include the network topology, endpoint count, PoE demand, uplink distance, SFP+ requirements, rack and UPS design, and any requested configuration or support services.

Buying and Sizing Guidance

Frequently Asked Questions

How many ports does the GWN7802P Pro have?

It has 16 Gigabit Ethernet access ports and two 10Gbps SFP+ uplink ports. The sixteen access ports support PoE according to IEEE 802.3af/at/bt.

What is the PoE budget?

Grandstream’s current datasheet specifies a maximum total PoE output of 250W for the GWN7802P Pro, with supported ports capable of up to 60W per port subject to the overall budget.

Is this the same as the older GWN7802P?

No. The GWN7802P Pro is a newer Pro-series model with a different hardware specification. Buyers should make sure quotations and comparisons explicitly state GWN7802P Pro so that older GWN7802P specifications are not mixed into the purchase decision.

Can it power Wi-Fi access points and IP cameras?

Yes, provided the endpoints use supported PoE standards and the combined power requirement remains within the switch’s total PoE budget. Exact endpoint compatibility and power demand should be checked from each device specification.

How can the switch be managed?

Management options include the local Web UI, GDMS Networking cloud management, GWN Manager on-premises software, supported GWN Series Routers, CLI, and SNMP.

Does it support VLANs and QoS?

Yes. It supports extensive VLAN functions and multiple QoS mechanisms, including port priority, 802.1p and DSCP mappings, queue scheduling, traffic shaping, and rate limiting.

Quotation Checklist

Decision Recap

Choose the Grandstream GWN7802P Pro when the project needs sixteen managed Gigabit access ports, PoE/PoE+/PoE++ support, a 250W PoE budget, dual 10Gbps SFP+ uplinks, enterprise-style VLAN and QoS controls, strong access-layer security, and flexible local or centralized management. If the project requires substantially more than sixteen access ports, very high total PoE capacity, redundant power architectures, or switch stacking, compare the requirement with larger GWN7800 Pro models before final selection. If the site needs fewer endpoints, verify whether a smaller model can meet the same functional and power requirements more economically.
